Product Overview :

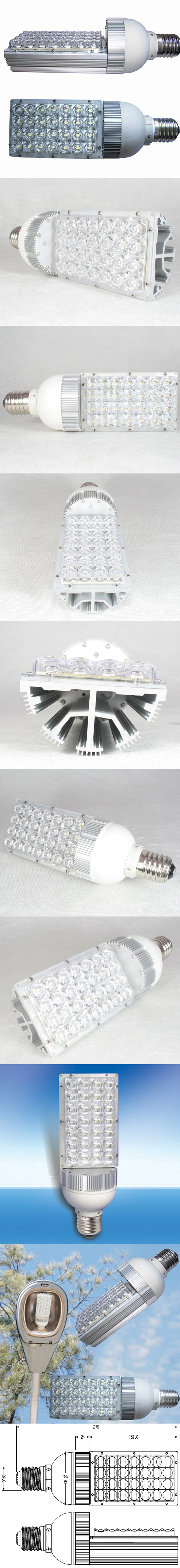

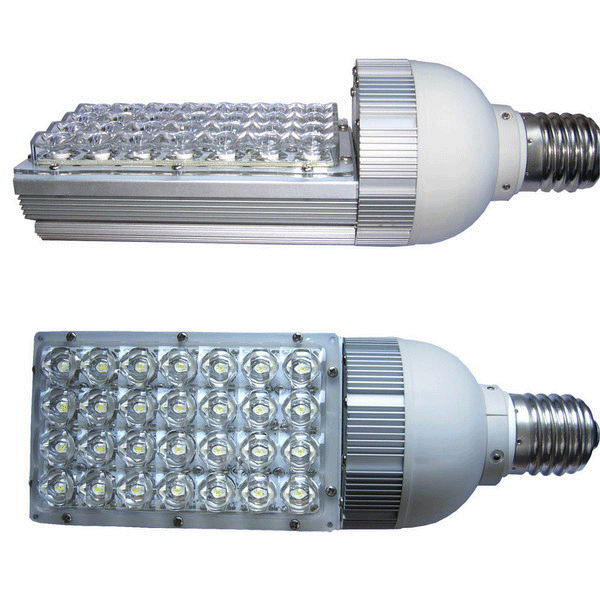

LED Street Light
Retrofit LED Street Light with 85 to 264V AC Working Voltage and Easy Installation

Specifications :

Power: 28W
Working voltage: 85 to 264 V AC
Low power consumption - LESS 80% !!
Creative design of the radiator and lamp holder integration
High brightness: up to 2100 lm, eight times more than the traditional street lamps
Lifespan: up to 70,000 hours
Adapts PWM constant current power
High efficiency
Power factor: >90%
Protects LED efficiently
Creative design of the radiator and lamp holder integration
Low power consumption
Robust design: shock and vibration-resistant
Beam pattern: rectangular beam focusing lens and reasonable control of the light distribution
Easy installation
With adjustable hoop, which can easy to install on any kind of lamp pole

Illumination (E) :

≥ 13 lux (Height = 6 m)
≥ 7.5 lux (Height = 8 m)
≥ 4.5 lux (Height = 10 m)
≥ 3 lux (Height = 12 m)

Effective Illuminated Area :

20 x 8 m (Height = 6 m)
26 x 10 m (Height = 8 m)
33 x 13 m (Height = 10 m)
40 x 16 m (Height = 12 m)

Product Certifications :

Certificate Standard: RoHS
Certificate Number: A06103004R
Issue Date: 30-Oct-2006
Certification Agent: AOV

Certificate Standard: ISO9001:2000
Certificate Number: Q050035
Issue Date: 08-Aug-2005
Certification Agent: UOS

Certificate Standard: CE
Certificate Number: ES0603009S
Issue Date: 21-Mar-2006
Certification Agent: EMTEK
