Product Overview :

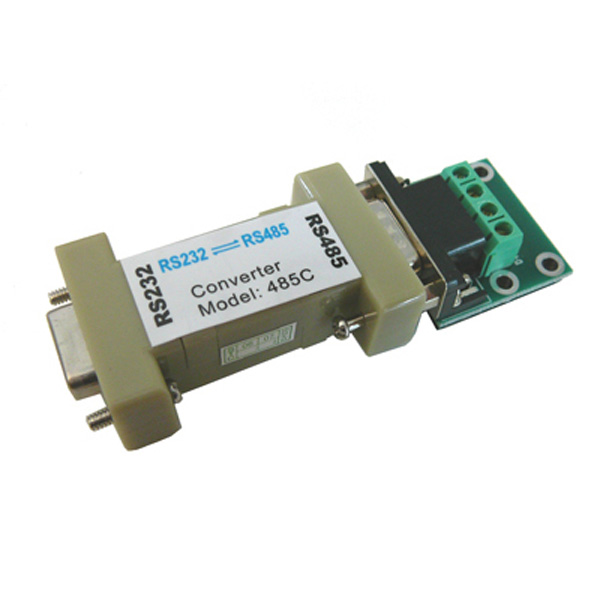

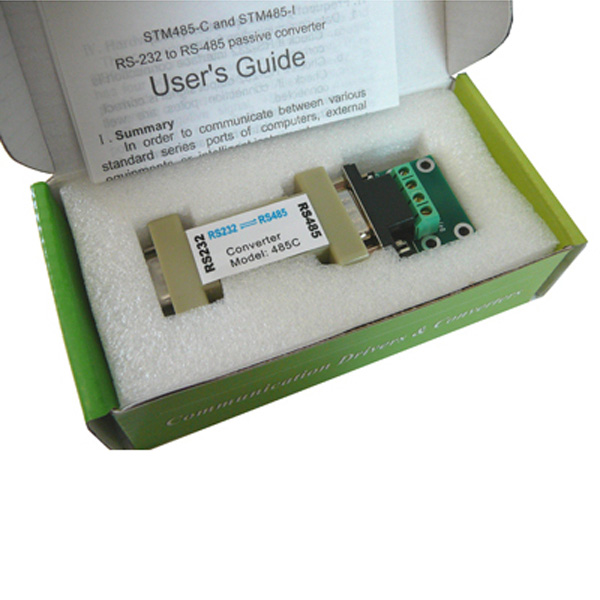

RS232 to RS485 Adapter.
Specification & Features :
- Compatibility : EIA/TIA RS232C standard and RS485 standard
- Interface RS232 side: DB9 female connector.
- Interface RS485 side: DB9 male connector with optional (included) terminal board.
- Transmission rate: 300 - 115200bps.
- Transmission distance: RS485 max. 1200m, RS232 side max. 5m
- Working mode: asynchronous, half-duplex, differential transmission.
- Working environment: 0 ~ 70°C, relative humidity 5% - 95%
- Mechanical dimensions: 95mm x 33mm x 17mm
RS232 to RS485 Adapter.
Specification & Features :
- Compatibility : EIA/TIA RS232C standard and RS485 standard
- Interface RS232 side: DB9 female connector.
- Interface RS485 side: DB9 male connector with optional (included) terminal board.
- Transmission rate: 300 - 115200bps.
- Transmission distance: RS485 max. 1200m, RS232 side max. 5m
- Working mode: asynchronous, half-duplex, differential transmission.
- Working environment: 0 ~ 70°C, relative humidity 5% - 95%
- Mechanical dimensions: 95mm x 33mm x 17mm
