Product Overview :

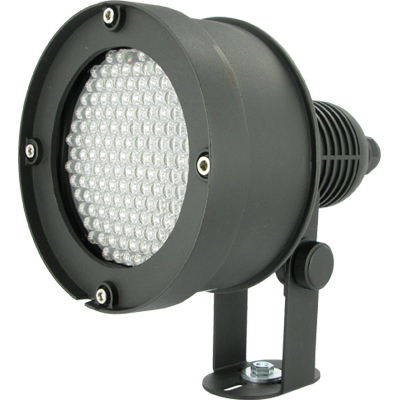

The VIR120 is a high quality weatherproof long range IR illuminator.
The perfect choice for any long range CCTV applications.
Features :
● High efficiency cooling structure aluminium case
● Dual power input: DC12V / AC24V
● 147 pieces super high power IR LED
● Switch on/off automatically by photocell
● Available IR distance: 120 meters
● IR projecting angle: 45°
Product in 360° rotation :
Specifications :

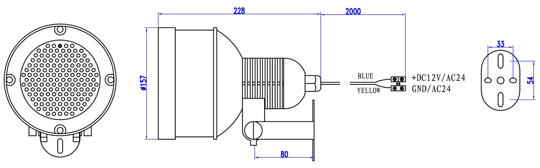

Shape dimensions :
PDF Specs sheet :

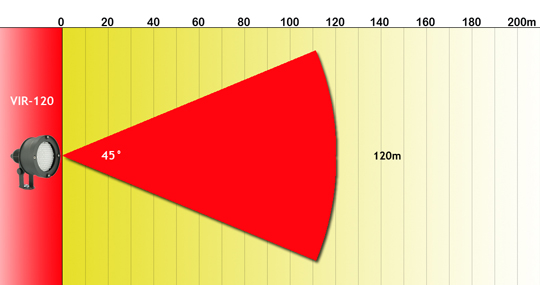

IR Range Matrix :
The VIR120 is a high quality weatherproof long range IR illuminator.
The perfect choice for any long range CCTV applications.
Features :
● High efficiency cooling structure aluminium case
● Dual power input: DC12V / AC24V
● 147 pieces super high power IR LED
● Switch on/off automatically by photocell
● Available IR distance: 120 meters
● IR projecting angle: 45°
Product in 360° rotation :
Specifications :
Item |
VIR120 |
IP Rating |
IP66 (Outdoor) |
IR LED |
147 pieces |
Wave Length |
850nm |
IR Projecting Angle |
45° |
Emissive Power |
18W |
Available IR Distance |
120M |
Control |
CDS/10Lux |
Power Supply |
DC12V ±10% / AC24V ±10% |
Current Consumption |
DC1400mA / AC1250mA |
Dimension |
157×228mm |
Weight |
2330g |
Storage Temperature |
-30+60 |
Operating Temperature |
-30+40 |
Shape dimensions :

PDF Specs sheet :

IR Range Matrix :
